(ABM-8165A) Shoes Dies Steel Rule Auto Bender included functions:Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 0.71/1.05/1.42/1.5/1.6/1.65/2mm × height 23.80-32mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

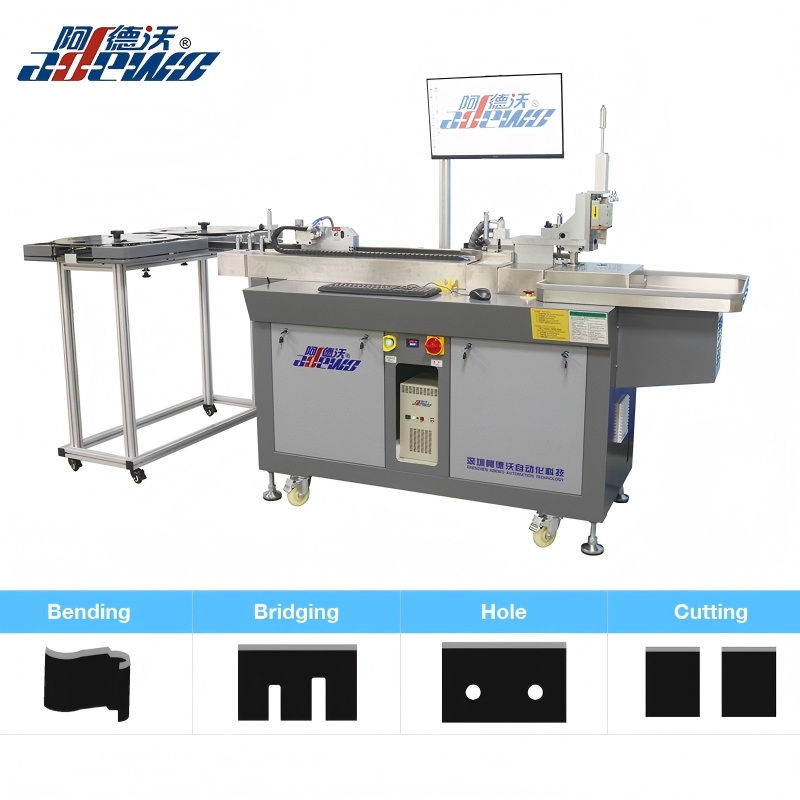

Picture of (ABM-8165A) Shoes Dies Steel Rule Auto Bender for reference:
1.Multi-Functionality: Fast, accurate bending; multi-bridging; pneumatic lipping;
2.Cutting.Power System: Equipped with Panasonic Servo motor and high-precision ball-screw feeding system.
3.Software: Smart, user-friendly, multi-language interface.
4.Efficiency: Reduces production time and facilitates die-making.
5.Applicability: Suitable for various mold processing, including corrugated, stripping, and rotary dies.
|
Supported rule thickness(mm) |
0.71,1.05,1.42,1.65mm |
|
Supported rule height(mm) |
23.80-32mm |
|
Max Bending Angle |
95° |
|
Min. ARC radius of 90 degree |
±0.3MM |
|
Front Min. cutting size |
2.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Cutting,Pneumatic Lipping |
|
Cutting methods |
Break off and Auto flat cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KG |
|
Overall dimension |
2800x1050x1600(L×W×H) |
|
H.S. Code |
8462230000 |
